Trace your floor plan into rooms, doors and windows

Beginner4 min6 steps

The 3D view is built from rooms, not from the picture. So to see a room in 3D, outline it over your plan and mark its doors and windows. You need an uploaded plan with the scale set; Will your furniture fit? covers both. Furniture you already placed stays where it is.

  1. 1

    Add a room

    Click Add room, give it a name and type its rough width and depth. It does not have to be exact, because you line it up with the drawing next. Press Add, and the room appears in the middle of the plan.

    use.layoutr.app

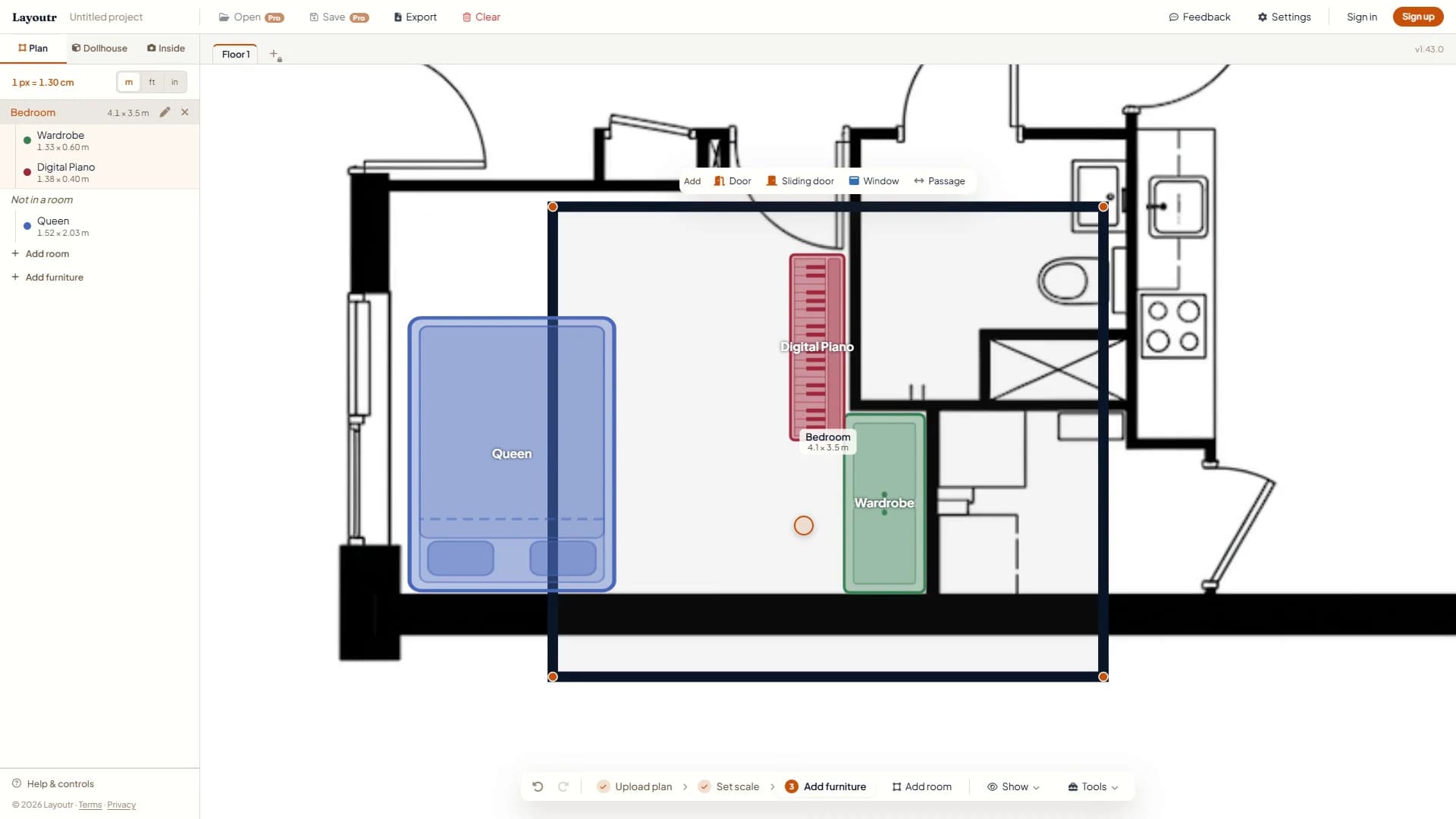

    A new Bedroom outline dropped over the plan, not yet lined up with its walls, with the Door, Sliding door, Window and Passage bar above it.
    A new room lands in the middle. Selected, it shows its corners and the openings bar.
  2. 2

    Line it up with the drawing

    Drag the room by its body until its walls sit on the walls of the drawing. Furniture inside the outline now belongs to the room, and the sidebar lists it under the room.

  3. 3

    Fit the corners

    Rooms are rarely plain rectangles, so shape the outline to match the walls of the drawing.

    • Double-click a wall to add a corner.
    • Drag a corner to move it. The wall lengths update as you drag.
    • To take a corner out, click it and press Remove corner.
    use.layoutr.app

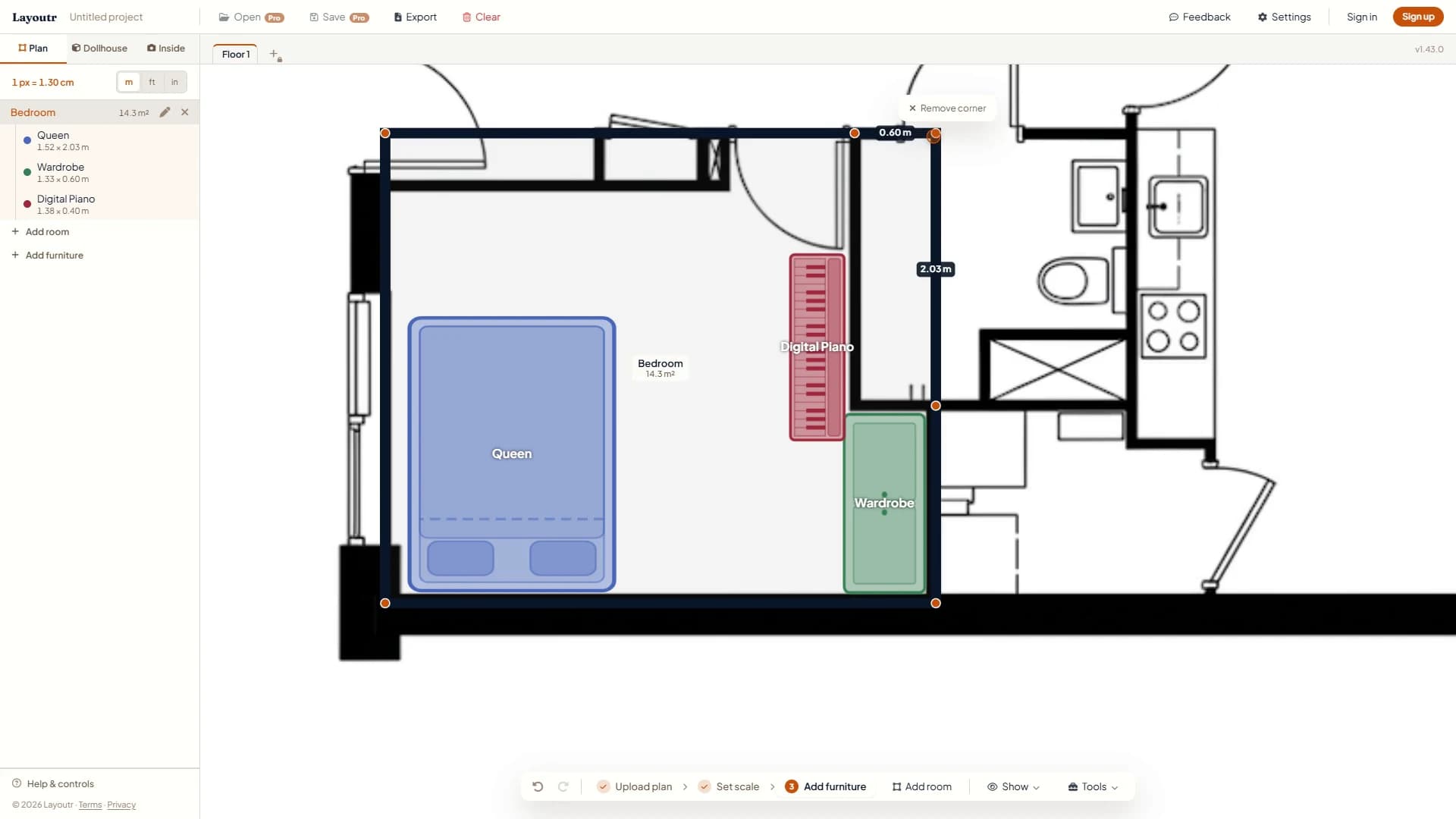

    A corner of the bedroom outline dragged in around the bathroom, with the new walls labeled 0.60 m and 2.03 m and a Remove corner button.
    Example: a corner dragged in around the bathroom, with new walls of 0.60 m (24 in) and 2.03 m (6 ft 8 in).
  4. 4

    Add the windows

    Select the room, and a bar appears with Door, Sliding door, Window and Passage. Pick Window; it starts on the longest wall. Drag it to where it really is and pull the dots at its ends to its real width. The labels show its distance to each corner.

    use.layoutr.app

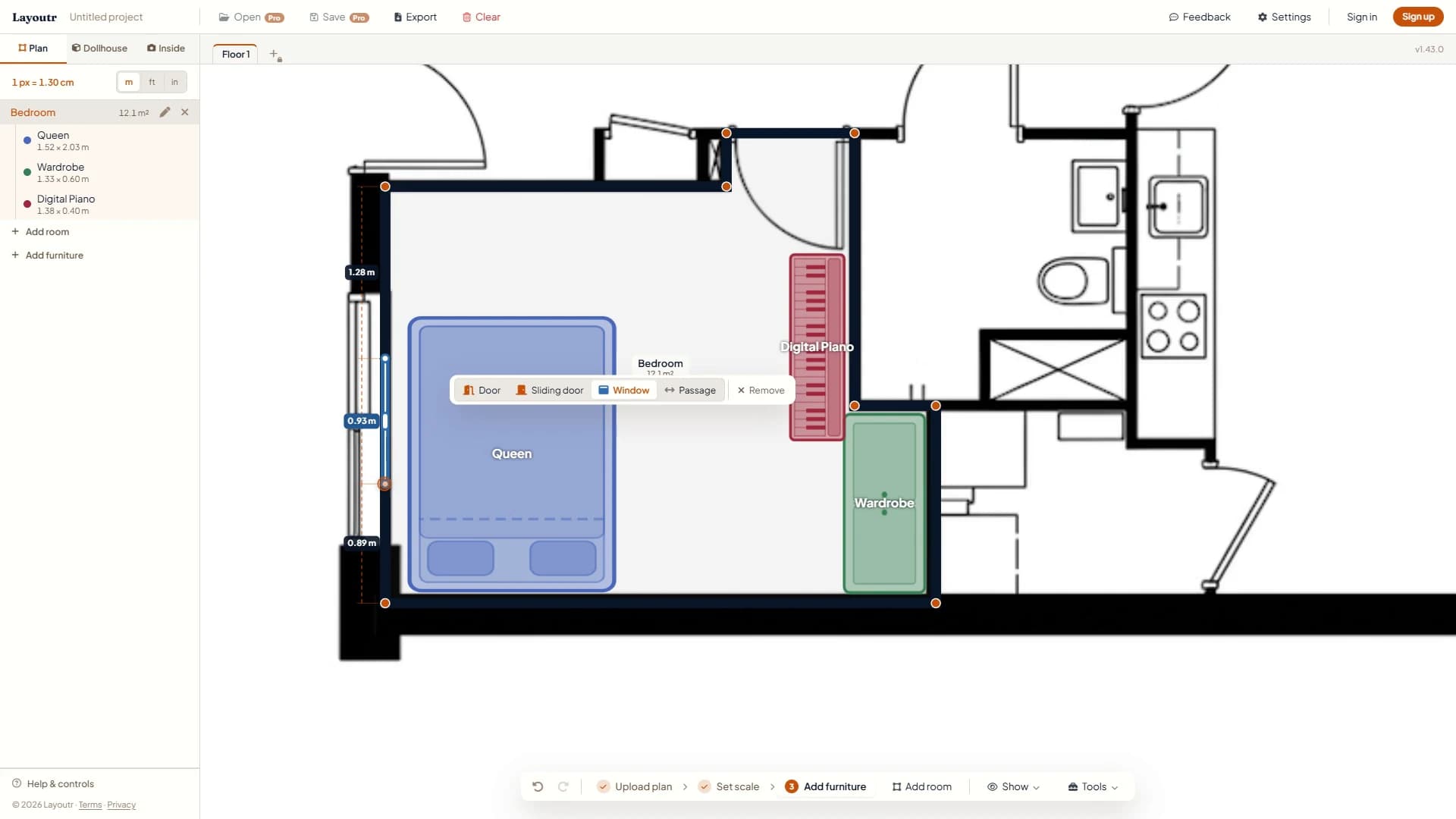

    A window on the bedroom's left wall, 0.93 m wide, 1.28 m and 0.89 m from the corners, with the openings bar next to it.
    Example: a 0.93 m (37 in) window, 1.28 m (4 ft 2 in) and 0.89 m (35 in) from the corners.
  5. 5

    Add the doors

    Add doors the same way with Door or Sliding door, and use Passage for an opening without a door. Slide each one to its doorway. Doors show where furniture cannot go, like in the swing of a door, and they appear in 3D along with the windows. To delete one, select it and press Remove.

    use.layoutr.app

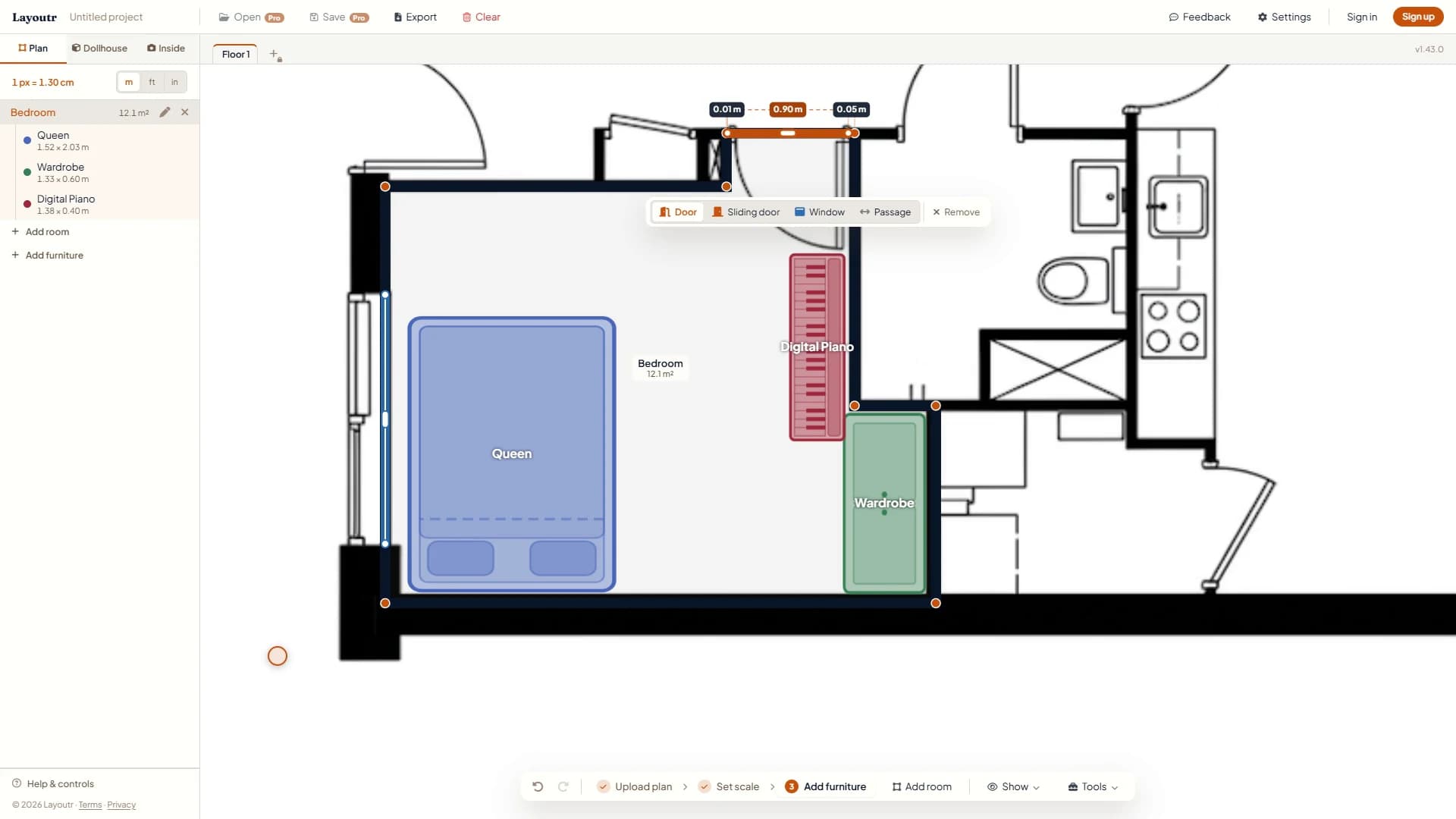

    A 0.90 m door slid into the nook at the top of the bedroom, with its distance to each corner labeled.
    Example: a 0.90 m (35 in) door, slid into the nook it sits in.
  6. 6

    Check the area

    The sidebar shows each room's real area. Compare it with the area on your plan or listing: if the two are close, the outline and the scale are right. Then see it in 3D and walk inside.

    use.layoutr.app

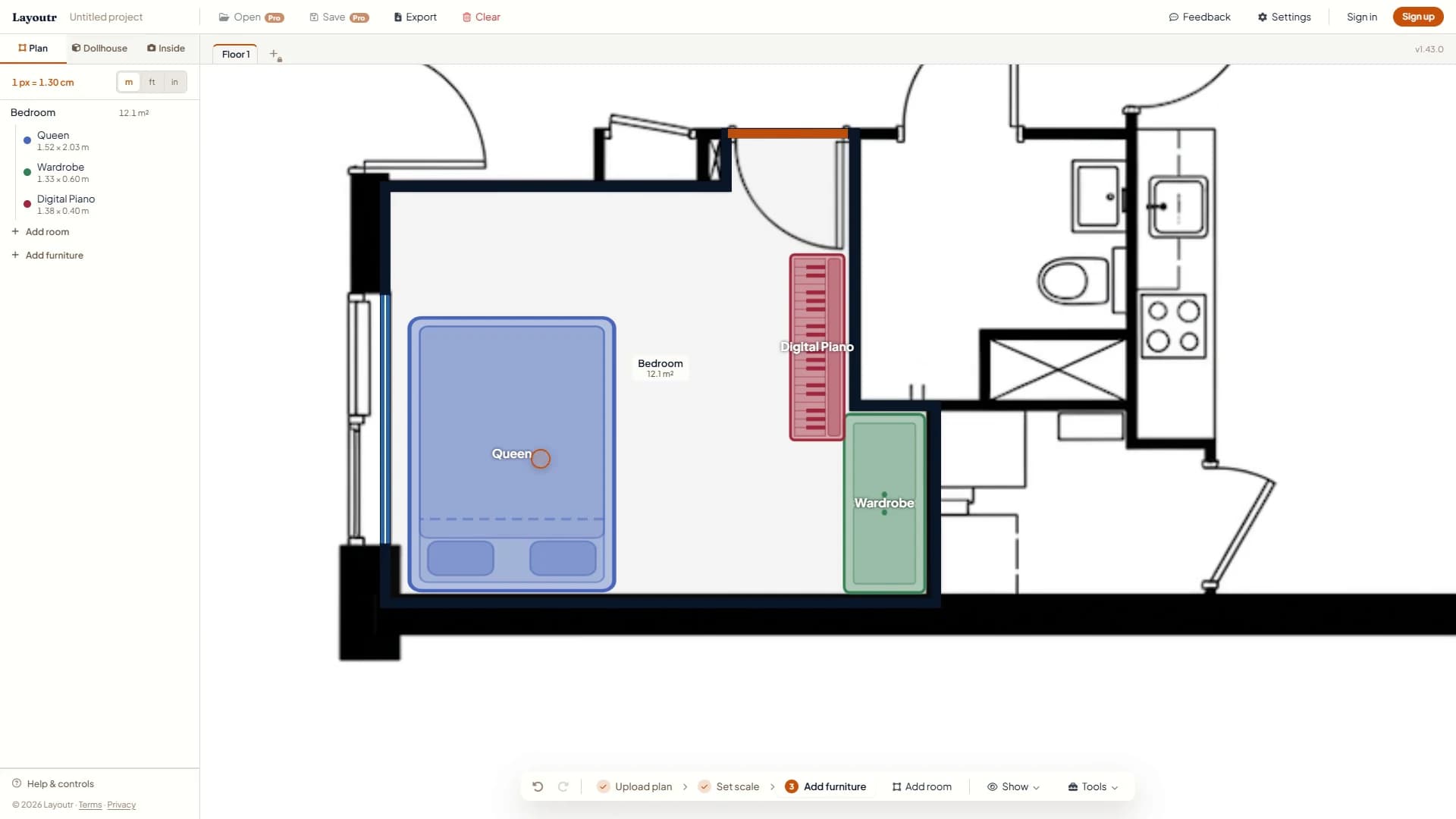

    The traced bedroom: its outline with the window in blue on the left wall and the door in orange in the nook, around a queen bed, a digital piano and a wardrobe, and 12.1 m² in the sidebar.
    Example: the traced bedroom at 12.1 m² (130 sq ft), ready for 3D.

Tip

Trace every room you want to see in 3D. Drag a room by its body and its edges snap to neighboring rooms, so shared walls line up instead of doubling.
